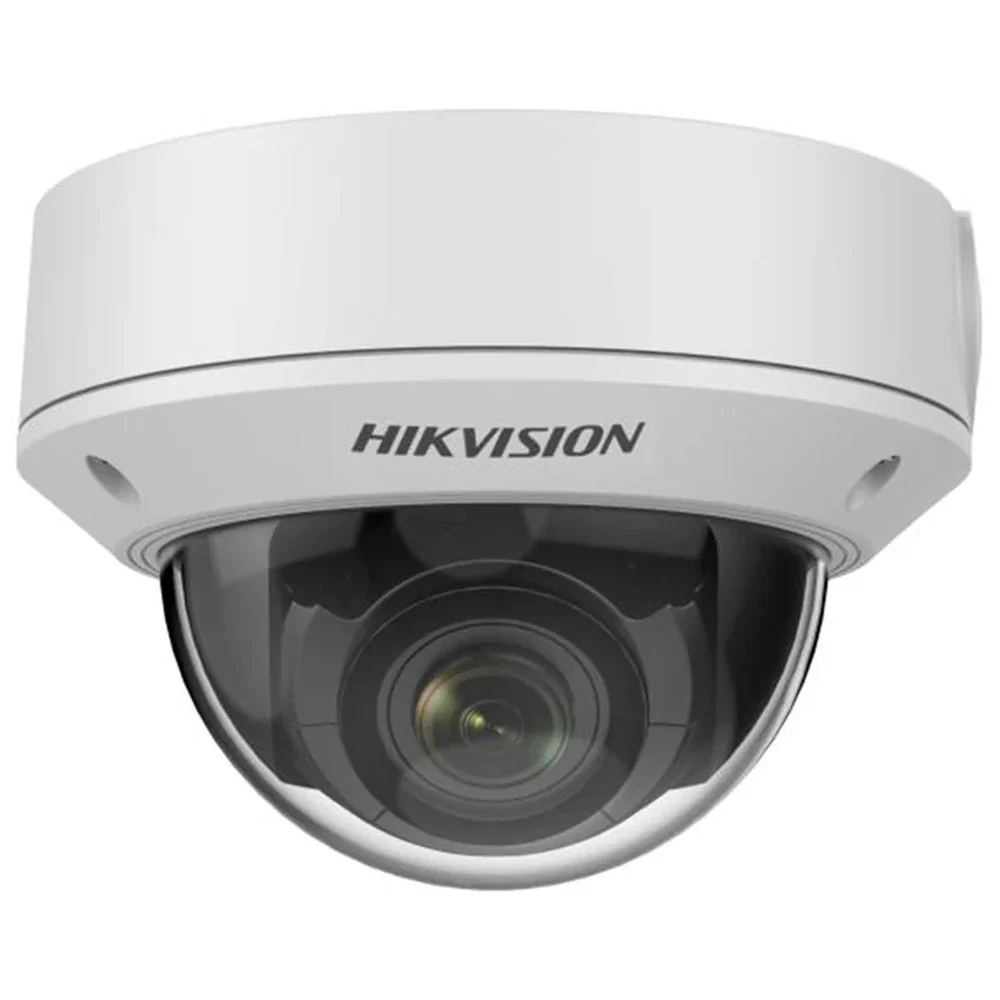

Hikvision DS-2CD1743G0-IZ Indoor IP Security Camera 4MP 2.8mm-12mm

Product image 1
1 / 3

Hikvision DS-2CD1743G0-IZ Indoor IP Security Camera 4MP 2.8mm-12mm

  • Brand: Hikvision
  • Model: DS-2CD1743G0-IZ
  • Type: Surveillance Camera
  • Camera
    • Image Sensor: 1/3" Progressive Scan CMOS
    • Resolution: Max. 4MP, 2560 × 1440
    • Illumination: Min. Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux With IR
    • Shutter Time: 1/3 s to 1/100,000 s
    • Day/Night: IR Cut Filter
    • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 70°, Rotation: 0° to 355°
    • Lens: 2.8 to 12 mm, Fixed Focal Lens
    • Field of View: Horizontal FOV 102° to 31°, Vertical FOV 54° to 17°, Diagonal FOV 123° to 35°
    • Lens Mount: Ø14
    • Light Type: IR
    • Light Range: Up To 30m
    • IR Wavelength: 850 nm
    • Day/Night Switch: Auto, Schedule, Day, Night
    • Image Enhancement : BLC, 3D DNR
  • Video & Audio
    • Main Stream: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
    •  Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG
    • Video Bit Rate: 32 Kbps to 8 Mbps
    • Environment Noise Filtering: Yes
  • Interface
    • On-Board Storage: Support MicroSD/SDHC/SDXC Card (256GB) Local Storage
    • Alarm: Yes, Motion Detection
    • Ethernet Interface: 1x RJ45 10 M/100 M Self-Adaptive Ethernet Port
  • Network
    • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
    • Simultaneous Live View: Up to 6 Channels
    • API: Yes
    • User/ Host: Up To 32 Users. 3 Levels: Administrator, Operator and User
  • General
    • Operating Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or Less (Non-Condensing)
    • Protection Level: IP67
    • Power Supply: 12 VDC ± 25%
    • Power Consumption: Max. 10 W, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
    • Material: Metal
    • Dimensions: Ø141 × 99.9mm
    • Weight: 820g
  • Warranty: 1 Year With Warranty Of The Authorized Agent

    $28.21

    Original: $80.59

    -65%
    Hikvision DS-2CD1743G0-IZ Indoor IP Security Camera 4MP 2.8mm-12mm—

    $80.59

    $28.21

    Product Information

    Shipping & Returns

    Description

    • Brand: Hikvision
    • Model: DS-2CD1743G0-IZ
    • Type: Surveillance Camera
    • Camera
      • Image Sensor: 1/3" Progressive Scan CMOS
      • Resolution: Max. 4MP, 2560 × 1440
      • Illumination: Min. Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux With IR
      • Shutter Time: 1/3 s to 1/100,000 s
      • Day/Night: IR Cut Filter
      • Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 70°, Rotation: 0° to 355°
      • Lens: 2.8 to 12 mm, Fixed Focal Lens
      • Field of View: Horizontal FOV 102° to 31°, Vertical FOV 54° to 17°, Diagonal FOV 123° to 35°
      • Lens Mount: Ø14
      • Light Type: IR
      • Light Range: Up To 30m
      • IR Wavelength: 850 nm
      • Day/Night Switch: Auto, Schedule, Day, Night
      • Image Enhancement : BLC, 3D DNR
    • Video & Audio
      • Main Stream: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
      •  Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
      • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG
      • Video Bit Rate: 32 Kbps to 8 Mbps
      • Environment Noise Filtering: Yes
    • Interface
      • On-Board Storage: Support MicroSD/SDHC/SDXC Card (256GB) Local Storage
      • Alarm: Yes, Motion Detection
      • Ethernet Interface: 1x RJ45 10 M/100 M Self-Adaptive Ethernet Port
    • Network
      • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
      • Simultaneous Live View: Up to 6 Channels
      • API: Yes
      • User/ Host: Up To 32 Users. 3 Levels: Administrator, Operator and User
    • General
      • Operating Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or Less (Non-Condensing)
      • Protection Level: IP67
      • Power Supply: 12 VDC ± 25%
      • Power Consumption: Max. 10 W, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
      • Material: Metal
      • Dimensions: Ø141 × 99.9mm
      • Weight: 820g
    • Warranty: 1 Year With Warranty Of The Authorized Agent
