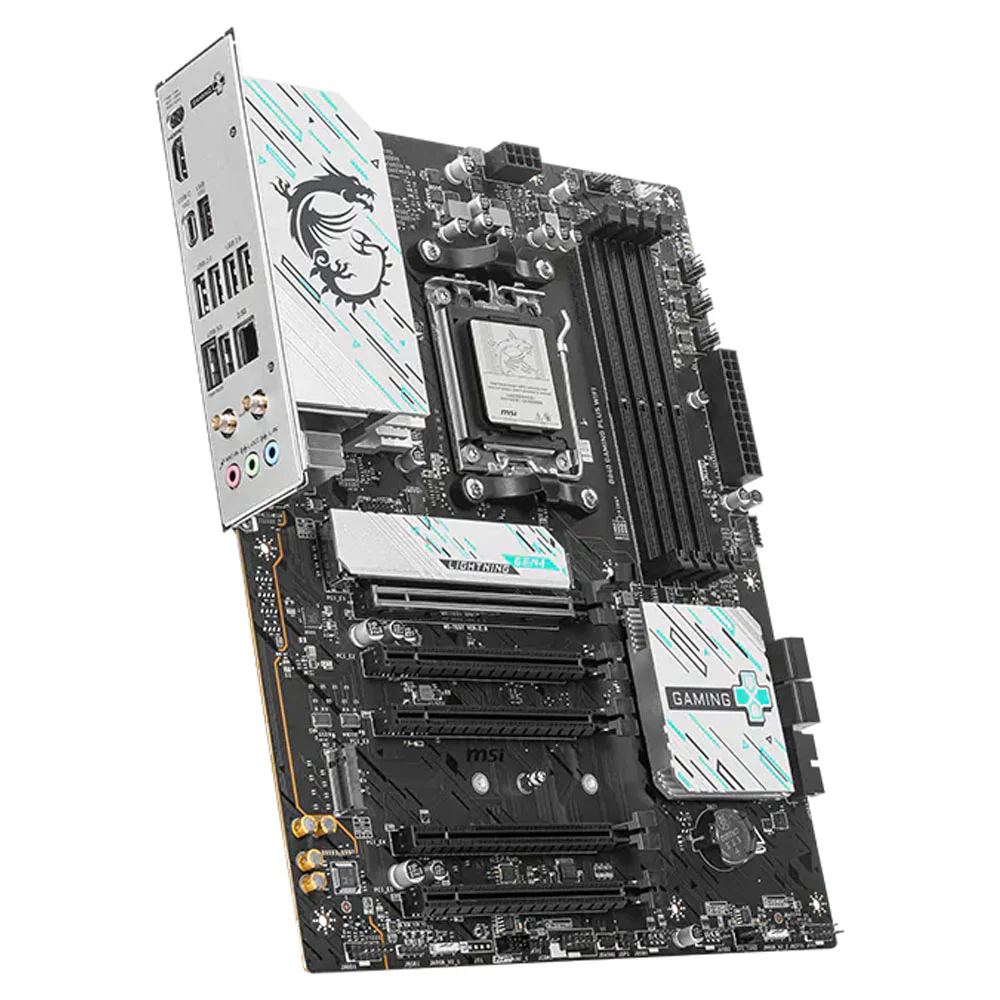

MSI B840 GAMING PLUS WiFi DDR5 Motherboard AM5

Product image 1
1 / 5

MSI B840 GAMING PLUS WiFi DDR5 Motherboard AM5

  • Brand: MSI
  • Model: B840 GAMING PLUS WIFI DDR5
  • Type: Motherboard
  • CPU Support: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  • CPU Socket: AM5
  • Chipset: AMD B840
  • Display Interface: 1x HDMI 2.1 Max. Resolution (4K @60Hz)
  • Memory Support: 4x DDR5 UDIMM DIMMs, Support up to 256GB, Max Speed Up to 8000+ MT/s (OC), Dual-Channel Mode
  • Expansion Slots: 1x PCIe 4.0 x16 (Up To x16 Mode), 3x PCIe 3.0 x16 ( Up To x1 Mode) , 1x PCIe 3.0 x1 (Up To x4 Mode)
  • Storage: 2x M.2 Gen4 x4 64Gbps Slots, 4x SATA 6Gbps Ports
  • USB Ports:
    • 4x USB 2.0
    • 2x USB 5Gbps (Type A)
    • 1x USB 10Gbps (Type A)
    • 1x USB 10Gbps (Type C)
    • 1x USB 5Gbps Connector (Type-C)
    • 2x USB 2.0 Connectors (Supports 4 USB 2.0 Ports)
    • 1x USB 5Gbps Connector (Supports 2 USB 5Gbps Ports)
  • Wi-Fi/BT: Wi-Fi 7 (802.11 a/ b/ g/ n/ ac/ ax/ be), Bluetooth 5.4
  • LAN: Realtek 8125BG 2.5Gbps LAN
  • Audio: 8-Channel (7.1) HD Audio with Audio Boost
  • 3x Audio Jacks
  • Warranty: 3 Years with Warranty of the Authorized Agent
$198.50
MSI B840 GAMING PLUS WiFi DDR5 Motherboard AM5—
$198.50

Product Information

Shipping & Returns

Description

  • Brand: MSI
  • Model: B840 GAMING PLUS WIFI DDR5
  • Type: Motherboard
  • CPU Support: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  • CPU Socket: AM5
  • Chipset: AMD B840
  • Display Interface: 1x HDMI 2.1 Max. Resolution (4K @60Hz)
  • Memory Support: 4x DDR5 UDIMM DIMMs, Support up to 256GB, Max Speed Up to 8000+ MT/s (OC), Dual-Channel Mode
  • Expansion Slots: 1x PCIe 4.0 x16 (Up To x16 Mode), 3x PCIe 3.0 x16 ( Up To x1 Mode) , 1x PCIe 3.0 x1 (Up To x4 Mode)
  • Storage: 2x M.2 Gen4 x4 64Gbps Slots, 4x SATA 6Gbps Ports
  • USB Ports:
    • 4x USB 2.0
    • 2x USB 5Gbps (Type A)
    • 1x USB 10Gbps (Type A)
    • 1x USB 10Gbps (Type C)
    • 1x USB 5Gbps Connector (Type-C)
    • 2x USB 2.0 Connectors (Supports 4 USB 2.0 Ports)
    • 1x USB 5Gbps Connector (Supports 2 USB 5Gbps Ports)
  • Wi-Fi/BT: Wi-Fi 7 (802.11 a/ b/ g/ n/ ac/ ax/ be), Bluetooth 5.4
  • LAN: Realtek 8125BG 2.5Gbps LAN
  • Audio: 8-Channel (7.1) HD Audio with Audio Boost
  • 3x Audio Jacks
  • Warranty: 3 Years with Warranty of the Authorized Agent
